Krew

Blood Bank Centrifuge

Krew Programmable Logic Controlled (PLC) Blood Bank Refrigerated centrifuges are designed for separating blood components from whole blood like platelet plasma, RBC and cryoprecipitate and it is ideal for Blood bank, Hospital clinical research laboratories pharmaceutical industries, research laboratories, Biotechnology and vaccine manufacturing industry.

Features

  • Maximum Speed 4600 rpm
  • Maximum RCF 7060 x g
  • Maximum capacity 12 Blood bags of 450 ml
  • Programmable Logic Control (PLC)
  • 7 Inch HMI with touch screen
  • USB Port for Data Extraction
  • Motorized double lock for better safety
  • Adjustable levelling jack
  • Castor wheels for ease of mobility
  • Programmable acceleration and deceleration
  • Pre cooling facility
  • Frost free refrigeration system
  • Data storage capacity up to 200000 readings
  • Safety Features
  • Salient Features
  • Main circuit breaker to protect electronic components in case of abnormal power supply
  • Overload cut off relay for compressor
  • 180 seconds time delay for compressor switch on
  • Audio visual alarm for abnormal conditions
  • Imbalance cut off with alarms and error messages
  • Lid opening and closing with the help of pneumatic hinges
  • Safety door interlock to prevent door opening during centrifugation
  • 99 Menu driven programs
  • In built pre cooling programs
  • Facility to Set RPM and RCF
  • Maintenance free Brush less induction motor
  • Variable frequency drive
  • Motorized double door lock for better safety
  • Minimum Acceleration time
  • Imbalance cut off with error messages
  • Self-diagnostic system with error messages
  • Castor wheel for ease of mobility
  • 10 acceleration and deceleration programs
  • Adjustable Levelling jack

A refrigerated lab centrifuge comes in a number of configurations, including swing bucket or fixed-angle types, or both. These centrifugation systems utilize centrifuge tips and tubes or well-plates for use in a number of applications, with capacities reaching 4 x 500 ml. It is important to seek refrigerated laboratory centrifuges with efficient cooling systems, automatic unit conversion capability, and other high-throughput enabling features.

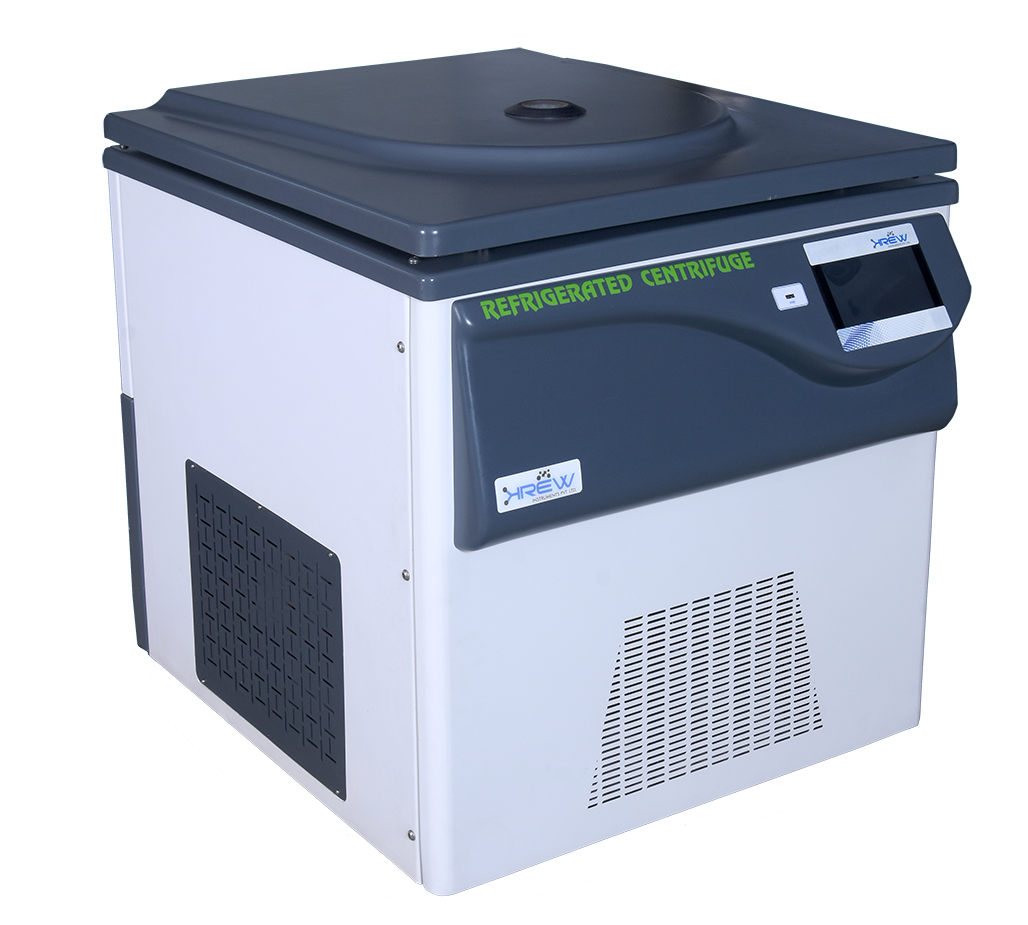

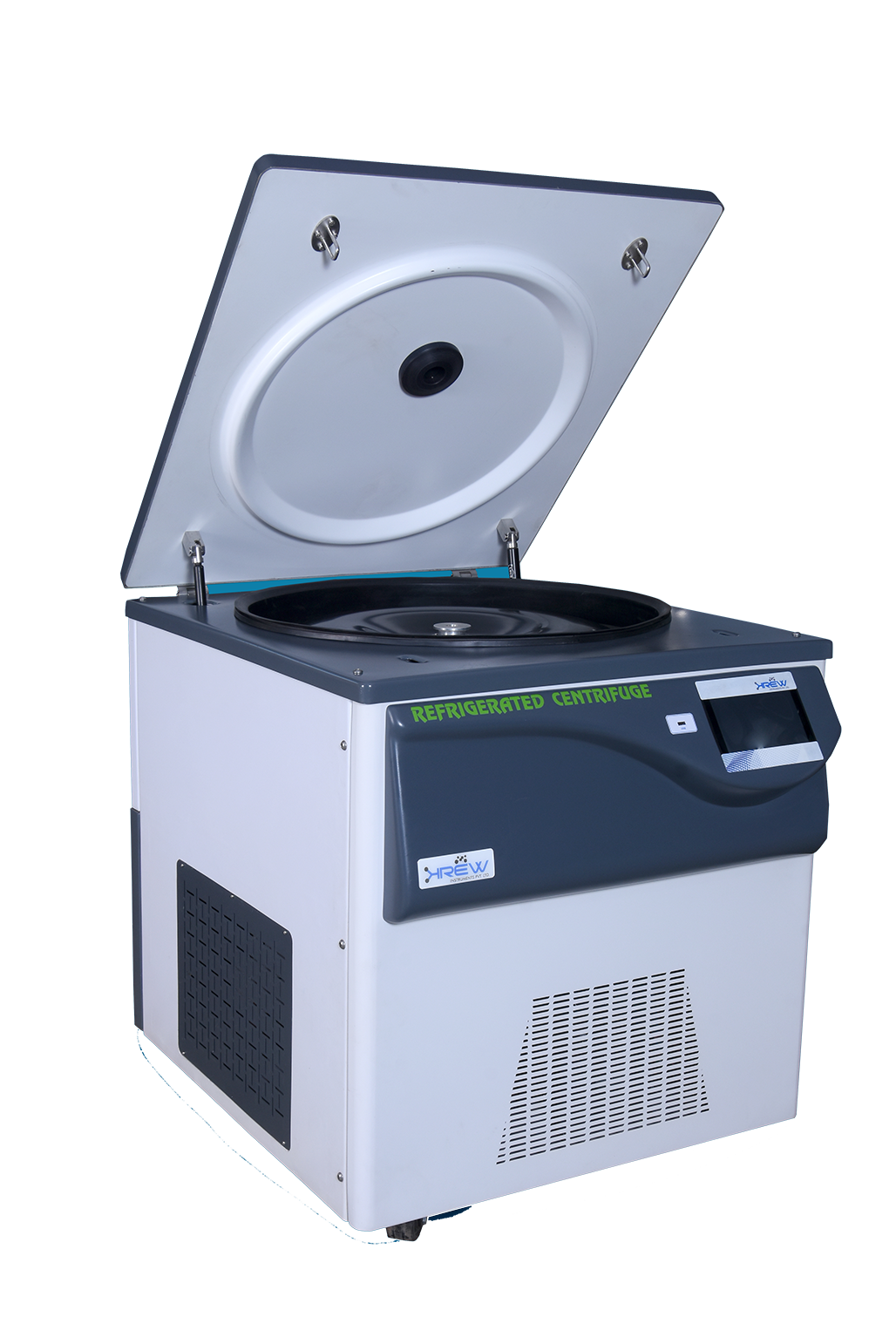

Krew Instruments Pvt Ltd Blood Bank Refrigerator centrifuge is a floor Model with convenient height for easy operation. The centrifuges are with sturdy and safe steel body with corrosion resistant epoxy coating and stainless steel refrigerated centrifuging chamber. Double walled lid with easy to handle gas spring hinges and mechanical and electronic safely Locks, Centrifuge is provided with mobility and adjustable rubber padded jacks leveling and sturdy locking on the floor. Two different models are offered in this range.

Blood Bank Centrifuge Technical Data

(W) 860 mm x (D) 960 mm x (H) 965mm Weight: 285 Kg, Connected Load : 10 kVA, Max. Speed ; 4800 RPM, Max. RCF : 6000 xg, Max. Tube Size : 500 ml, Max. Capacity : 6000 ml. Our centrifuge has Swing Out Rotor Heads and multiple carriers for any Blood Bank Applications that is best dealt for a Centrifuge Model KBC
